Need HVAC Test Tools for Measuring Airflow? This "intelligent" tool provides real-time data for analysis, logging and reporting.

HVAC test tools made by DegreeC are next generation instruments that can monitor airflow, temperature, humidity and even pressure while providing data logging and reporting capability.
Duct traverse airflow sensor data is transferred using a familiar USB interface.
A familiar USB output is used to transfer data from the air temperature sensor
HVAC test tool heads with dual multi function come in a wide range of shapes and sizes for various applications.
Multi-purpose sensors for air velocity, air temperature, humidity, and pressure.
HVAC test tools data can be viewed in real-time with software that allows for logging, graphing, and printing.
Air temperature, velocity, humidity and pressure can be logged and analyzed with AccuTrac software

Visualize data from the HVAC test tools for informed analysis.
Informed analysis can be done by visualizing the air temperature and velocity data
HVAC test tools data is transferred using a familiar USB interface.
A familiar USB output is used to transfer data from the air temperature sensor
Duct traverse airflow sensor heads with dual multi function come in a wide range of shapes and sizes for various applications.
Multi-purpose sensors for air velocity, air temperature, humidity, and pressure.

HVAC Test Tools

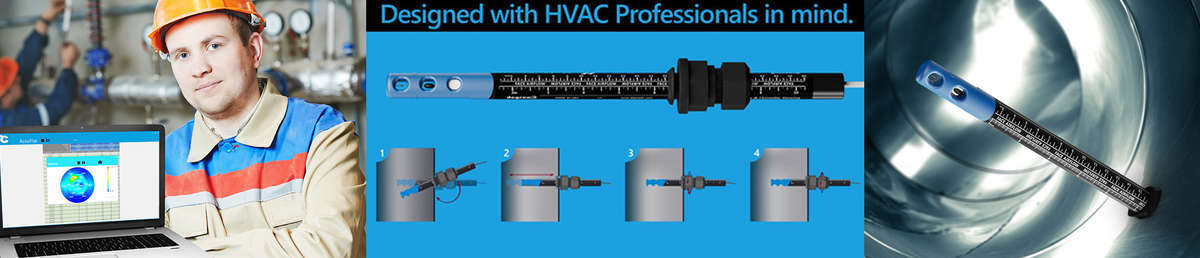

We had HVAC professionals in mind when we designed these HVAC Test Tools that measure air velocity, temperature, and humidity. Just 4 easy steps make installation a breeze! It only requires a single hole and there's no need for screws or getting your hands inside the duct. READ BLOG: on Multi-point Measurement in a Duct based on ASHRAE and Tchebycheff Rule.

So what makes these HVAC test tools "intelligent"? These "next-generation" airflow sensors can connect to a data acquisition instrument by an intuitive USB interface. The data from a single point or multiple points can be viewed in real-time, aggregated, logged, and analyzed using robust software that allows for graphing, data logging, and printing.
  • Conformal-Coated Electronics - robust, UV-tolerant, splash-proof enclosure for use in corrosive or alkaline environments
  • Innovative “Outside the Duct” Installation - single hole for mounting sensor assembly, without the need for screws or hands inside the duct
  • Remote Sensor Head Options - multiple designs are available to support a wide range of application scenarios
  • Configured-to-order - choice of air velocity range, supply voltage, mechanical length, and output communication style
  • Analog & Digital Communication - supports 0-5V, 0-10V, 4-20mA, and digital UART or I²C communication outputs
  • Universal Supply Voltage - suitable for applications where AC or DC supply voltages are encountered
  • Single or Multi-Channel Data Acquisition up to 180 sensors measuring air velocity, air temperature, surface temperature, humidity, & barometric pressure data in real-time
  • Real-Time Data Logging - of air velocity, temperature, humidity, and pressure with compensation for changing humidity and barometric pressure (altitude)
  • Graphing Features - Line Graph and Gradient Graph features allow users to simply drag-and-drop the desired sensors into an easy-to-view graphing section, and export in jpeg format
Browse HVAC Test Tools Catalog

HVAC Test Tools based on the Tchebycheff Rule

The °C SPAR Sensor Pole Array from Degree Controls is optimal for in-duct HVAC airflow analysis. It is a linear array of airflow sensors assembled into a single tube element with USB outputs. The °C SPAR is designed for multi-point experimentation where there are predefined measurement locations, just as shown in the Log-Tchebycheff Rule for calculating volumetric flow within ducts. With the °C SPAR, air velocity, temperature, and humidity can be measured and recorded at multiple points in real-time for building duct performance testing.
